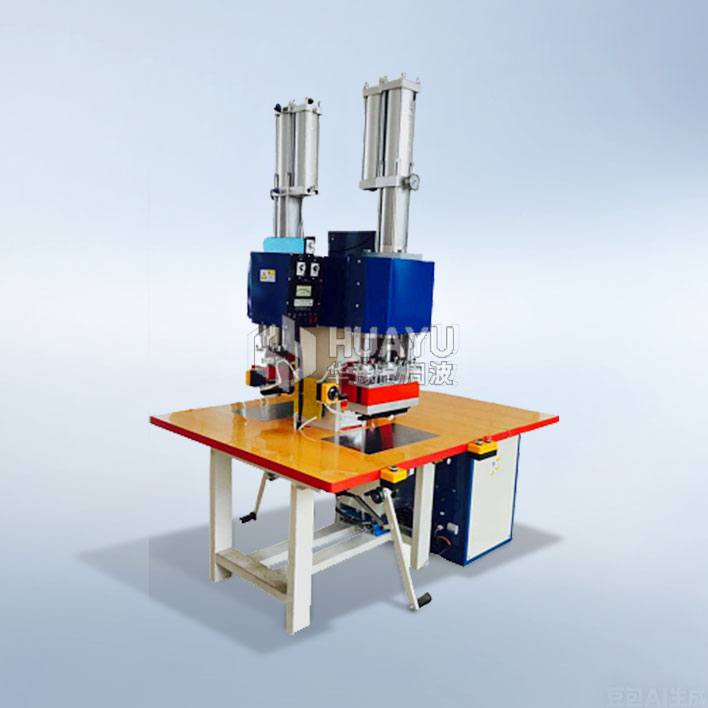

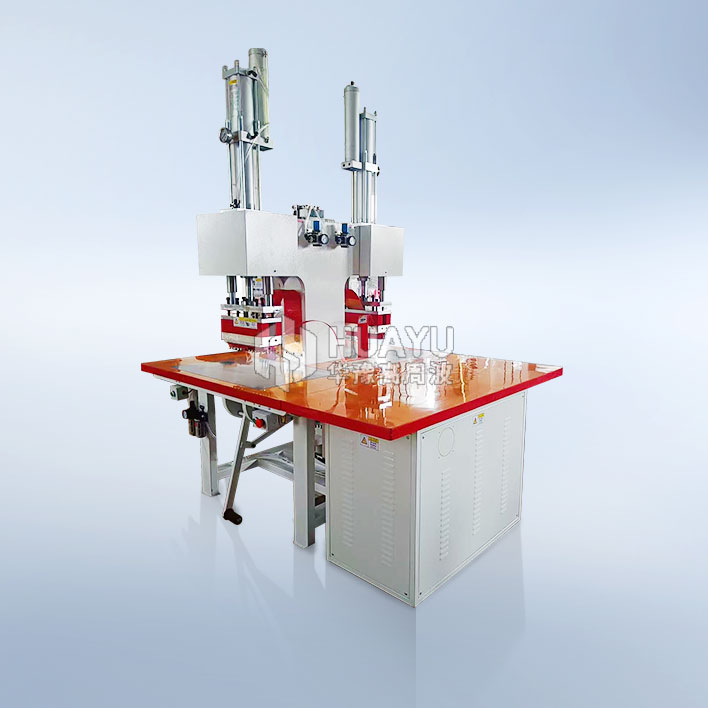

1. The dual head fuse high-frequency machine is particularly suitable for welding and cutting edges of products that are difficult to align.
2. The air hydraulic pressure device can adjust the pressure from 0 to 50 tons freely.
3. Using vacuum tubes, the output power is stable and the performance is excellent.
4. Equipped with a highly sensitive spark overcurrent protection circuit, it can effectively cut off damage to the host caused by high current output and suppress sparks
5. Equipped with high-frequency stabilizers and high-frequency shielding devices to minimize high-frequency interference.
6. Equipped with an electronic constant temperature control system, the temperature control is precise.
7. Automatic overcurrent protection system increases the service life of vacuum tubes and protects molds.
8. One time fusion and cutting, no need to pad insulation medium, stable product efficiency, smooth cutting edge, good hand feel, and beautiful appearance.
| Upper electrode size | Lower electrode size | Output power | Input voltage | Maximum stroke |
| 300×400mm | 300×400mm | 8KW | 3Φ 380V | 200mm |
Suitable for welding and melting materials such as PET, PETG, APET, cardboard, synthetic fabrics, leather, etc,
For example: phone cases, figurines, toothbrush packaging, car seat cushions, sun visors, watch straps, belts, CD bags, trademarks, vacuum forming, hang card packaging, etc
