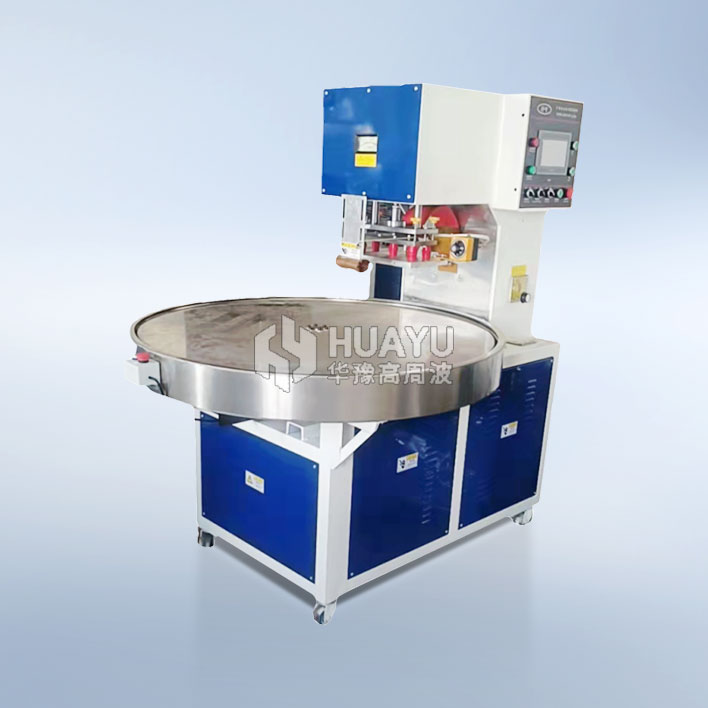

Fully automatic multi station disc high-frequency welding machine

Product Features

1. Using vacuum tubes, the output power is stable and the performance is excellent.

2. Equipped with a highly sensitive spark overcurrent protection circuit, it can effectively cut off damage to the host caused by high current output and suppress sparks

3. Equipped with high-frequency stabilizers and high-frequency shielding devices to minimize high-frequency interference.

4. Automatic overcurrent protection system increases the service life of vacuum tubes and protects molds.

5. The left and right sliding table devices can be operated by skilled hands and are easy to operate.

6. Four corner horizontal adjustment, easy and time-saving mold adjustment.

Contact Us

Fully automatic multi station disc high-frequency welding machine

Product Parameters

Product Application

Product Parameters

Project/ModelOutput powerOscillation frequencyPower supply voltageUpper electrode sizeBase plate sizeWheel size
HY-8000SA8KW27.12MHZ380V 3Φ350*500 mm500*550 mmФ1200 mm
HY-5000SA5KW27.12MHZ380V 3Φ200*350mm400*600mmФ1200 mm

Product Application

Special purpose welding, embossing, and other processing of pure PVC or soft and hard rubber, profiles, genuine leather, synthetic leather, and fabrics containing more than 10% components.

For example: phone cases, figurines, toothbrush packaging, watch straps, belts, CD bags, trademarks, vacuum formed, hang card packaging, etc
