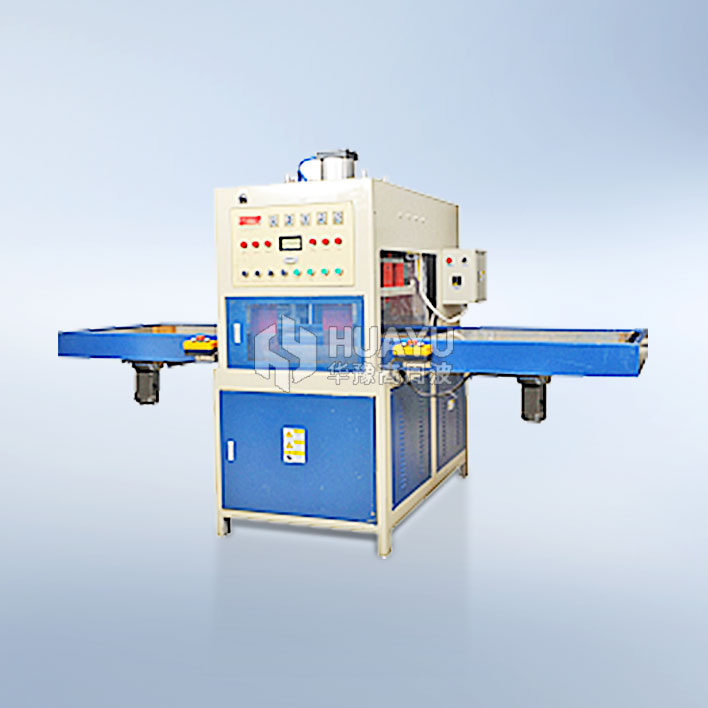

Single head four column gantry high-frequency machine

Product Features

1. Using vacuum tubes, the output power is stable and the performance is excellent.

2. Equipped with a highly sensitive spark overcurrent protection circuit, it can effectively cut off damage to the host caused by high current output and suppress sparks

3. Equipped with high-frequency stabilizers and high-frequency shielding devices to minimize high-frequency interference.

4. Equipped with an electronic constant temperature control system, the temperature control is precise.

5. Automatic overcurrent protection system increases the service life of vacuum tubes and protects molds.

6. Automatic sliding table device, fast and precise positioning of sliding table action.

7. Four corner horizontal adjustment, easy and time-saving mold adjustment.

Contact Us

Single head four column gantry high-frequency machine

Product Parameters

Product Application

Product Parameters

Project/ModelOutput powerOscillation frequencyPower supply voltageUpper electrode sizeLower electrode sizeWorkbench dimensions
HY-15000A15KW27.12MHZ380V 3Φ700*700mm700*700mm850*850mm
HY-25000A25KW27.12MHZ380V 3Φ850*850mm850*900mm850*1000mm

Product Application

Special purpose welding, embossing, and other processing of pure PVC or soft and hard rubber, profiles, genuine leather, synthetic leather, and fabrics containing more than 10% components.

For example: large inflatable toys, water rubber boats, inflatable mattresses, car seat cushions, side door panels, stroller seat cushions, carpet embossing, etc
